FDA 510(k) cleared · K981141
An implant that
works the day
you place it.

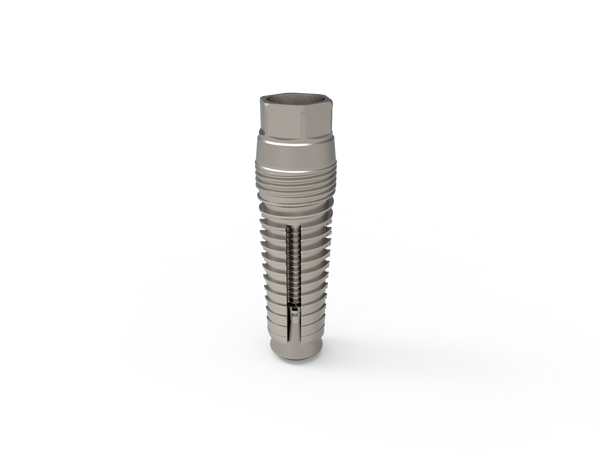

Ultratooth is an expandable titanium implant that achieves its own primary stability mechanically, at the moment of placement — so a single appointment can carry a patient from extraction to a functioning tooth.
3 mm abutment portion
3.8 / 4.8 mm body Ø
Apical expansion
01 — The premise
Stability you create,
not stability you wait for.
A conventional root-form implant borrows its early stability from friction against the osteotomy wall, then spends months earning the rest through osseointegration. Every week of that wait is a week the patient spends without a tooth — and a week of staged appointments, provisionals and grafting for the practice.

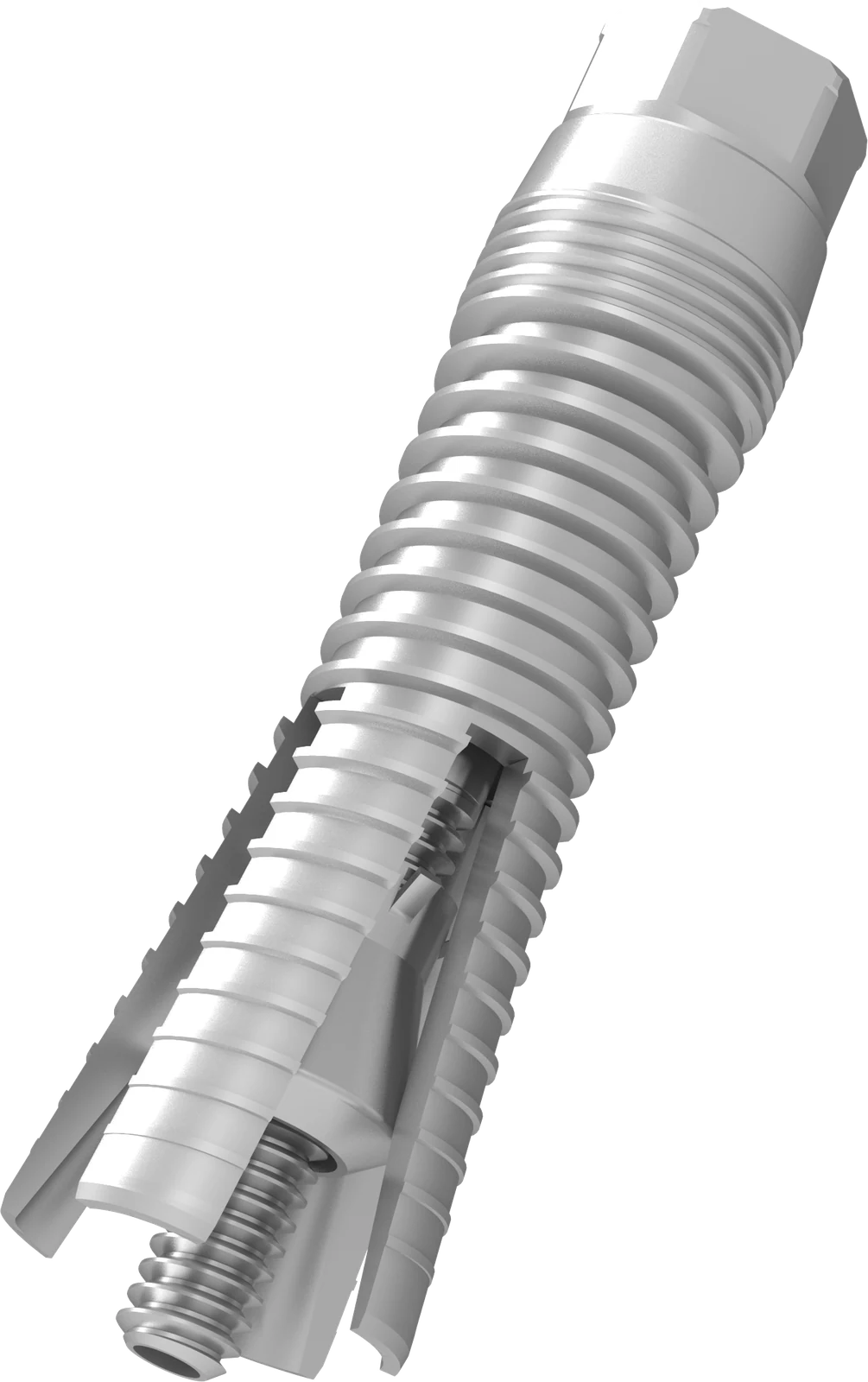

Ultratooth takes a different route. After the fixture is seated, the surgeon torques an internal expansion screw to 20 N·cm. Four apical legs open outward into the surrounding bone, converting the implant from something held in a socket to something locked into it. Primary stability becomes a mechanical event under the surgeon's control, verified in the chair, rather than a biological outcome measured months later.
02 — Design
Four decisions that
define the device.
Every element of the Ultratooth exists to compress a multi-stage treatment into a single appointment without asking the clinician to accept less control.
-
01
Apical expansion

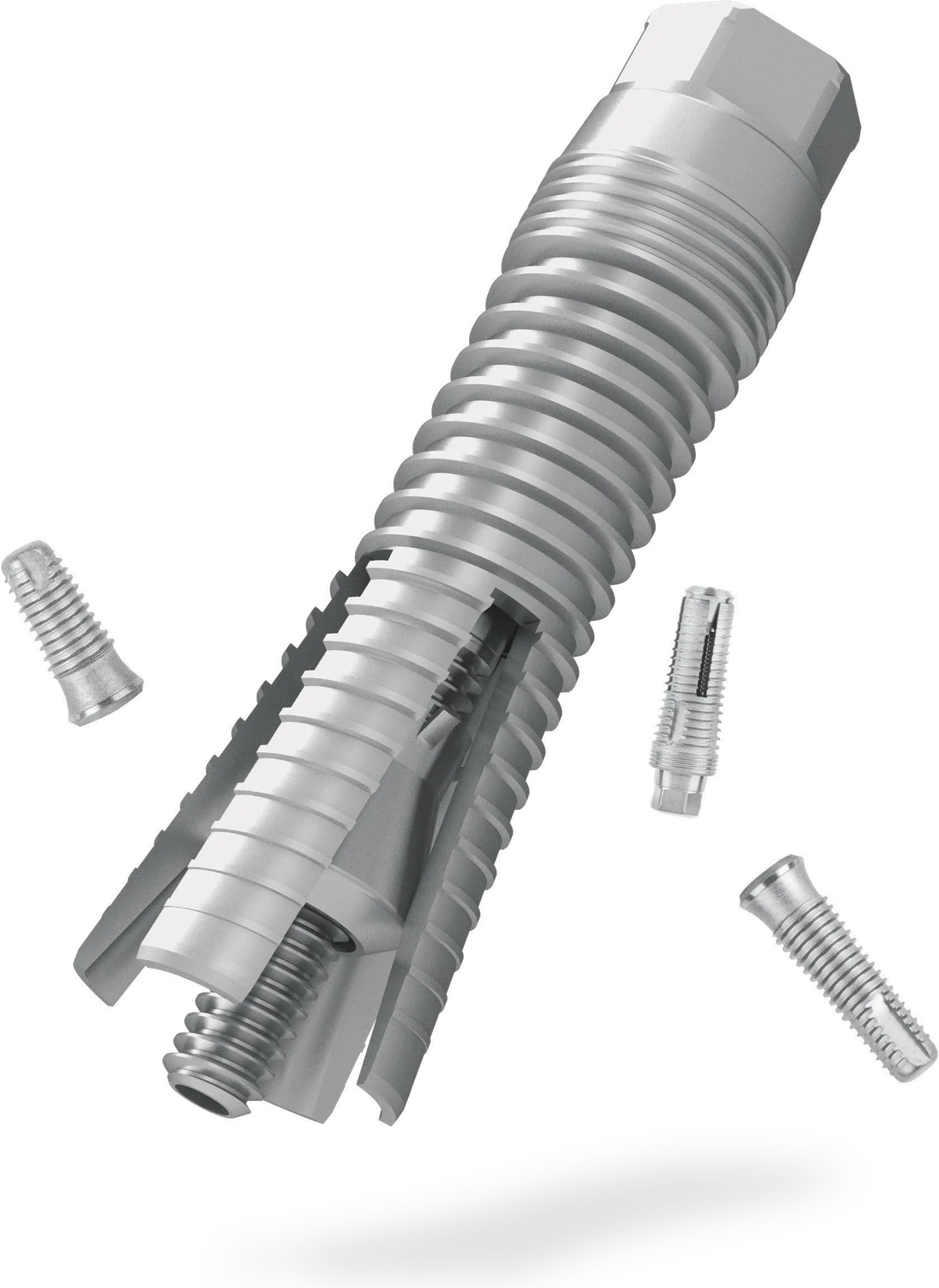

A screwdriver engages the expansion screw through the implant channel and draws the expansion cone upward. The apical legs spread into the bone walls and compact the surrounding trabeculae, generating stability that can be felt and torque-verified immediately.
-
02
One piece, no interface
The Ultratooth is a single implant-and-abutment unit. There is no implant–abutment junction to microleak, irritate the soft tissue or loosen — and no second-stage surgery to uncover it.
-
03
Tapered coronal geometry
The widening coronal form supports the emergence profile of the natural tooth it replaces, which matters most in the aesthetic zone where the socket architecture is still intact at placement.
-
04
One drill, not five
The universal one-step drill replaces the rosette, pilot and guide sequence for sufficiently experienced surgeons — fewer instrument changes, less chair time, less thermal insult to the site.
03 — Evidence
Thirty years of
placement behind it.
The expandable implant has been evaluated independently, tested mechanically to specification, and followed prospectively in published series. The primary sources are listed in full.
286 implants
75 patients
An up-to-40-month prospective survival study of freestanding and multi-unit immediate loading of the expandable implant, published by Jo, Hobo and Hobo.
Read the finding INDEPENDENT EVALUATIONUSC School
of Dentistry
Clinical and microbiological evaluation of the immediate-load implant conducted by the Advanced Periodontics programme at the University of Southern California.
Read the finding MECHANICAL TESTINGStatic &
fatigue protocol
Independent laboratory testing of 16 mm implant assemblies with 15° angled abutments, conducted to a written test protocol.
Read the finding04 — The range

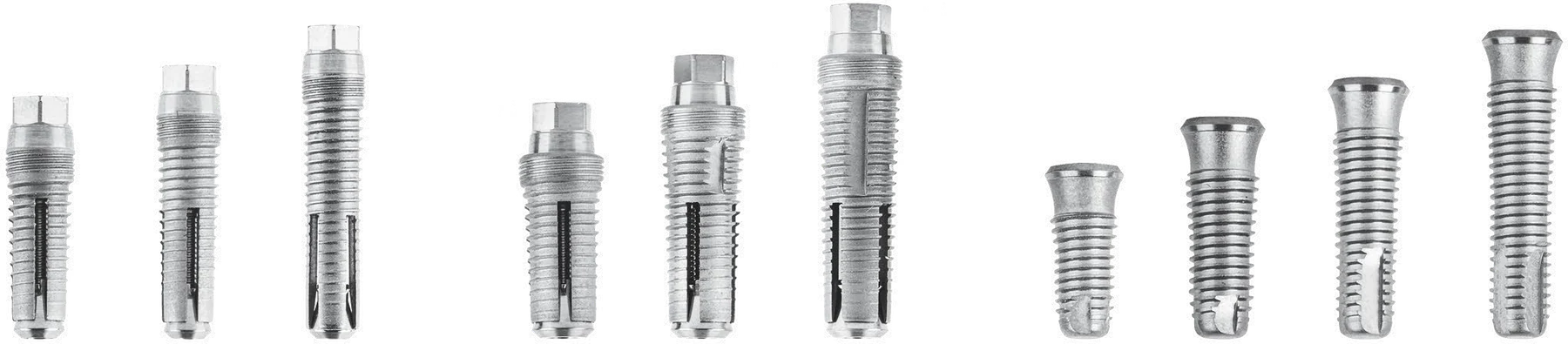

Two diameters.
Three lengths.
One platform.
Standard and wide-body Ultratooth fixtures share a single restorative platform, so the prosthetic components and the surgical kit stay the same across the range. A non-expandable internal-connection line covers the sites where expansion is not indicated.
Pricing is not published online. Biodent supplies the Ultratooth system directly to certified providers — contact us for a quotation and current availability.
05 — Certification
The system is only
sold to people
trained to place it.
Formal training in the surgical placement and prosthetic restoration of the Ultratooth is a requirement, not a recommendation. Certification covers case selection, the expansion protocol, provisionalisation, and the management and removal of failing implants.
For patients
Missing, broken or failing tooth?
Understand what an Ultratooth is, what a single-visit appointment involves, and what to ask the provider treating you.
